Array Fiber Collimators
1D and 2D Array Fiber Collimators
Precise Fibers Spacing +/- 0.5µm
Singlemode, PM, or Multimode Fibers
Very Low Pointing Error
Uniform illumination across the array
Ultra low loss and low back reflection
Larger array, i.e. 16x16 or 32x32 available on custom basis
Product Description:

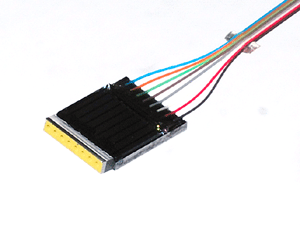

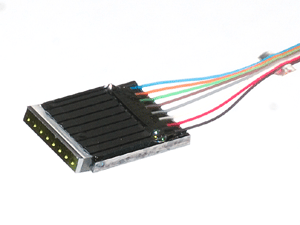

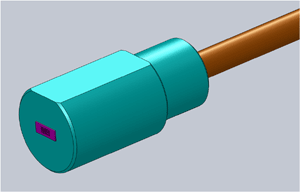

1x8 Array
Collimators
1x16 Array
Collimators
2D Array Collimators
Silicon Lightwave manufactures high performance 1D and 2D array fiber collimators with sub-micron fiber spacing accuracy and uniform fiber core center line. Our 2D fiber arrays can be made with variety fibers including non-fluorescent, UV fibers, and Mid-IR fibers. We can also manufacture fiber collimator array with different fiber types into a single array or customer supplied fibers.
Specifications

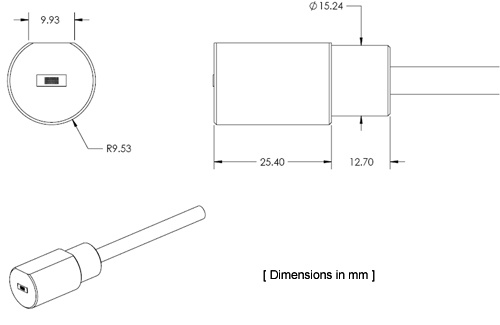

Drawings
Test Data
Characteristics
Value
Number of Channels
2x2, 3x3, 6x8, 12x12 or Custom
Fiber Spacing
250, 500, 750, 1000 µm
Fiber Core Position Tolerance
< 0.5 µm
Beam Diameter
300 µm or Other
Pointing Error
< 3 mrad
AR Coating
< 0.25% at specified wavelength
Housing Dimension
0.75" dia. x 1.5" length or Customer specify
Fiber Type
Singlemode, Multimode, PM, PCF, Hollow-Core, Mid-IR
Breakout Connector Type
FC/PC, FC/APC, SMA, SC, LC, ST, MU
Related Components:
1D
Fiber Array
2D
Fiber Array
Fiber Bundles
Ordering Information:
Fiber Type:
SM
MM
PM
Core Size[µm]:
Numerical Aperture (NA):
Wavelength [nm]:
355 nm
405 nm
460 nm
500 nm
633 nm
820 nm
980 nm
1060 nm
1310 nm
1550 nm
Other
Beam Size [µm]:
300
Other
Array Dimension:
2x2
3x3
6x8
12x12
Other
Fan-Out Connector:
FC
SMA
SC
LC
MU
ST
E-2000
DIN
Ferrule
Bare Fiber
Other
Fiber Spacing [µm]:
250
500
750
1000
Other
Fiber Length:
1m
2m
3m
2ft
Other
Additional Requirements:
