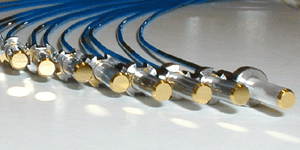

Fiber Mirror Reflector

  • Compact and High Reflectivity
  • Low PDL
  • Variety of fiber size and operating wavelength available
  • Rugged and stable operation


Product Description:

Application:
  • Interferometry, Sensors, and Microwave Photonic Systems

Specifications
Drawings
Test Data
Parameters FR-46 FR-63 FR-1310 FR-1550
Operating Wavelength 450-600nm 600-1050nm 1050-1700nm 1230-1750nm
Reflectivity 97% 97% 97% 97%
PDL 0.3 dB 0.3 dB 0.3 dB 0.5 dB
Maximum Optical Power 1 W 1 W 1 W 1 W
Fiber Type Nufern 460-HP Nufern 630-HP Nufern PM1300-HP SMF-28
Operating Temperature -40C to + 125C


Ordering Information:

Fiber Type:
Wavelength: Fiber Length:
% Reflectivity:   Connector Type:

Additional Requirements:
