Fiber Collimator

Tiny Size Fiber Collimators/Focusers

  • Very tiny fiber-size collimators
  • Quality Gaussian beam
  • Rugged compact collimator tip
  • Singlemode at specified wavelengths
  • Polarization maintaining fiber collimator available
  • Extremely low pointing error
  • Linear or two-dimensional tiny collimator array available
  • Operating wavelength from 285 - 2000 nm
  • Operating temperature -40°C to +500°C

Product Description:

Tiny fiber collimators for tight space or hard-to-reach applications such as combustion analysis, surgical optical catheters, laser delivery... Variety of fiber types and beam size available. Special custom endtip housing or tubing also available

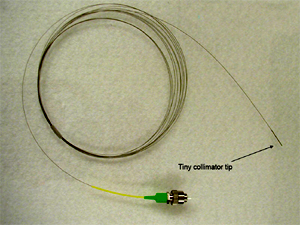

Tiny size collimator and its relative
beam size compare to that of a regular
bare fiber

Tiny size collimator for
combustion analysis
applications

Drawings/Technical Info
Test Data
Fiber Collimator Drawings


Ordering Information:

Fiber Type:
Wavelength [nm] Fiber Length [m]:
Beam Diameter [µm]:   Connector Type:

Additional Requirements:
