High Power

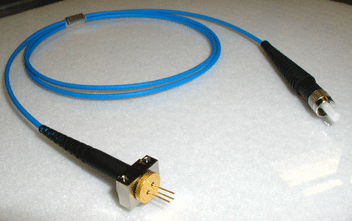

Fiber-Coupled Lasers

  • High Fiber Output Power 100 mW to 20W
  • High Reliability, Rugged and Stable Operation
  • Singlemode, Multimode, and PM Fiber Output
  • Single Transverse Mode Lasers
  • Diffraction Limited Beam for SM and PM Fiber
  • Heatsink Configuration for Reliable Operation

High Power Laser High Power Laser High Power Laser High Power Laser High Power Laser High Power Laser High Power Laser


Ordering Information:

Part Number Description Wavelength Power In Stock Quote
Qty.
expand icon Very High Power Pump Lasers
FL-808-7000-105F Single Emiter Multimode Laser 105µm/0.15NA Fiber, FC/APC 808nm 7W
FL-940-7000-105F Single Emiter Multimode Laser 105µm/0.15NA Fiber, FC/APC 940nm 7W
FL-808-2000-100F Single Emiter Multimode Laser 100µm/0.22NA Fiber, FC/PC 808nm 2W Call
FL-940-10000-100F Single Emiter Multimode Laser 100µm Fiber, FC/PC 940nm 10W Call
FL-975-10000-100F Single Emiter Multimode Laser 100µm Fiber, FC/PC 975nm 10W Call
expand icon Multimode Fiber Pigtail Lasers
FL-635-62F 62.5µm Core Fiber, FC/PC 635nm 20mW
FL-660-62F 62.5µm Core Fiber, FC/PC 660nm 100mW
FL-660-100S 100µm Core Fiber, SMA-905 660nm 130mW
FL-685-62F 62.5µm Core Fiber, FC/PC 685nm 30mW
FL-785-62F 62.5µm Core Fiber, FC/PC 785nm 60mW
FL-808-100S 100µm Core Fiber, SMA-905 808nm 1W
FL-830-62F 62.5µm Core Fiber, FC/PC 830nm 100mW
FL-850-62F 62.5µm Core Fiber, FC/PC 850nm 60mW
FL-915-400S 400µm Core Fiber, SMA-905 915nm 17W
FL-923-400S 100µm Core Fiber, SMA-905 923nm 3W
FL-980-62F 62.5µm Core Fiber, FC/PC 980nm 100mW
FL-980-100S 100µm Core Fiber, FC/PC 980nm 130mW
FL-1310-62F 62.5µm Core Fiber, FC/PC 1310nm 20mW
expand icon Polarization Maintaining (PM) Fiber Pigtail Lasers
FL-660-4PF PM Fiber, FC/PC 660nm 80mW
FL-830-5PF PM Fiber, FC/PC 830nm 60mW
FL-850-5PF PM Fiber, FC/PC 850nm 20mW
FL-980-6PF  PM Fiber, FC/PC 980nm 60mW
FL-1310-7PF PM Fiber, FC/PC 1310nm 10mW
FL-1480-8PF  PM Fiber, FC/PC 1480nm 180mW
expand icon Singlemode Fiber Pigtail Lasers
FL-635-4F FC/PC 635nm 10mW
FL-660-4F FC/PC 660nm 80mW
FL-685-4F FC/PC 685nm 10mW
FL-785-4F FC/PC 785nm 20mW
FL-830-5F FC/PC 830nm 60mW
FL-850-5F FC/PC 850nm 20mW
FL-980-6F FC/PC 980nm 60mW
FL-1310-7F FC/PC 1310nm 10mW
FL-1550-8F FC/PC 1550nm 10mW
