2D Fiber Arrays

  • 2D 12x12 Fibers with 250 microns spacing
  • Precise fibers spacing in two-dimensions
  • Singlemode, PM, or Multimode Fibers
  • High quality flat polish endface

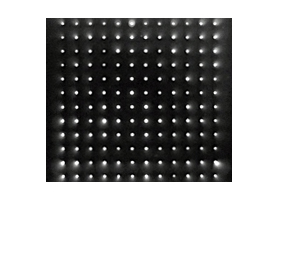

  • Uniform illumination across all fibers
  • Densely compact uniform fiber array
  • Integrated with lens array to form collimated array
  • Larger array, i.e. 16x16 or 32x32 available on custom basis
Product Description:

Silicon lightwave manufactures high performance 2D fiber arrays with sub-micron fiber spacing accuracy and uniform fiber core center line. Our 2D fiber arrays can be made with variety fibers including non-fluorescent, UV fibers, and Mid-IR fibers. We can also manufacture fiber array with different fiber types into a single array or customer supplied fibers.

Specifications
Drawings
Test Data
Characteristics Value
Number of Channels 2x2, 3x3, 6x8, 12x12 or Custom
Fiber Spacing 250, 500, 750, 1000 µm
Fiber Core Position Tolerance < 0.5 µm
Surface Finish < 10-15 Angstroms, 10/5 Scratch/Dig
Edge Plane Perpendicularity ± 0.1º
Flatness 1/10 wave
Angle Polishing Accurate to any specified angle
Fiber Type Singlemode, Multimode, PM, PCF, Hollow-Core, Mid-IR
Breakout Connector Type FC/PC, FC/APC, SMA, SC, LC, ST, MU


Ordering Information:

Fiber Type:
Wavelength:   Endface Angle [º]:
Number of Channels:   Fiber Length:
Fiber Spacing [µm]:   Fan-out Connector:

Additional Requirements:
