High Power Fiber Patchcords

  • Epoxy-free air-gap design thermal dissipation
  • Innovative coreless fiber splice, cleaved fibers, and unique polishing process
  • Tested for high power handling: upto 10 Watts for SM and PM fibers and upto 30 Watts for MM and PCF fibers
  • Ultra-low loss and low back-reflection
  • Operating wavelength from 180nm - 2000nm
  • Low and high NA fibers available in stock
  • Anti-reflection coating available

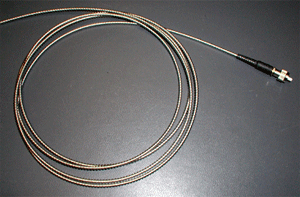

  • Stainless steel armored cabling for maximum safety
Product Description:

Silicon Lightwave Technology manufactures special high power fiber optic patchcords for high power laser and collimator applications. Special connector design and quality prepared fiber endface ensure maximum power handling and prevent system failure due to laser damage. Our design also take into consideration when the beam launch into fiber patchcords from high power laser as well as when the beam exit fiber patchcord into other optic components such as collimators and filters to make sure no laser damage and still maintain clean Gaussian beam.

Application:
  • Laser Welding, Fiber Lasers, LIDAR
  • Remote sensing, Interferometry
  • Material Processing
  • Non-Linear Optics, Pulsed Lasers
  • Spectroscopy and Biomedical Lasers

Ordering Information:

Fiber Type:
Wavelength [nm]:
Power Rating:   Connector A:
Cable Length:   Connector B:

Additional Requirements:




Part Number Description In
Stock		 Quote
Qty.
expand icon Large Core Multimode
HPM-1064-100/140-S1F1-3-3 10W multimode fiber patchcords, 100/140µm GI Fiber, 1064nm wavelength, SMA - FC connectors, 3mm PVC w/ Kevlar, 3m length Call
HPS-1550-8/125-F1F1-3A-3 3W singlemode fiber patchcords, 9/125µm fiber, 1550nm wavelength, FC - FC connectors, 3mm stainless steel jacket, 3m length Call
expand icon Photonic Crystal Fiber (PCF)
expand icon Hollow-Core Fibers
